S8740240P

GaAs Push Pull Hybrid

S8740240P Features

* Excellent linearity Superior return loss performance Extremely low distortion Optimal reliability Extremely low noise Unconditionally stable under all terminations S8740240P APPLICATION

* 40 to 870 MHz CATV amplifier systems DESC

S8740240P General Description



* Hybrid Push Pull amplifier module employing GaAs dice GaAs Push Pull Hybrid 40

* 870MHz 23.5dB min. Gain @ 870MHz 255mA max. @ 24VDC LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134) SYMBOL Vi Vov Tstg Tmb PARAMETER RF input voltage (single tone) .

S8740240P Datasheet (147.17 KB)

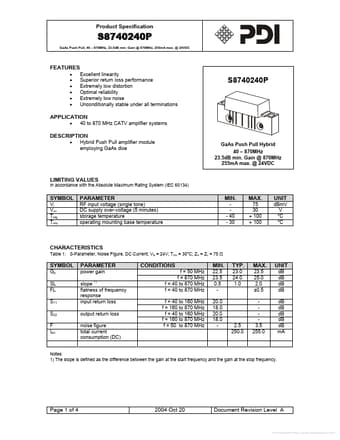

Preview of S8740240P PDF

Datasheet Details

Part number:

S8740240P

Manufacturer:

PDI

File Size:

147.17 KB

Description:

Gaas push pull hybrid.
