S8740260GT

GaAs Push Pull Hybrid

S8740260GT Features

* Excellent linearity Superior return loss performance Extremely low distortion Optimal reliability Low noise Unconditionally stable under all terminations S8740260GT APPLICATION 40 to 870 MHz CATV amplifier systems DES

S8740260GT General Description

Hybrid Push Pull amplifier module employing GaAs dice GaAs Push Pull Hybrid 40

* 870MHz 26.0dB min. Gain @ 870MHz 240mA max. @ 24VDC LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134) SYMBOL Vi Vov Tstg Tmb PARAMETER RF input voltage (single tone) DC supply .

S8740260GT Datasheet (95.87 KB)

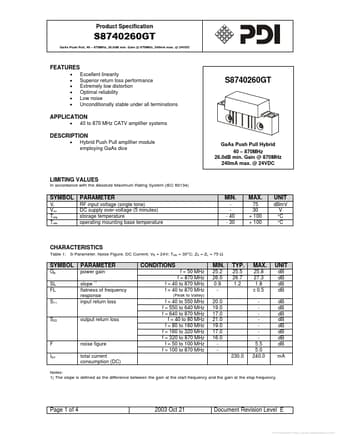

Preview of S8740260GT PDF

Datasheet Details

Part number:

S8740260GT

Manufacturer:

PDI

File Size:

95.87 KB

Description:

Gaas push pull hybrid.
