S8740240P12

GaAs Push Pull Hybrid

S8740240P12 Features

* Excellent linearity Superior return loss performance Extremely low distortion Optimal reliability Extremely low noise Unconditionally stable under all terminations S8740240P12 APPLICATION

* 40 to 870 MHz CATV amplifier systems DE

S8740240P12 General Description



* Hybrid Push Pull amplifier module employing GaAs dice GaAs Push Pull Hybrid 40

* 870MHz 23.5dB min. Gain @ 870MHz 450mA max. @ 12VDC LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134) SYMBOL Vi Vov Tstg Tmb PARAMETER RF input voltage (single tone) .

S8740240P12 Datasheet (147.34 KB)

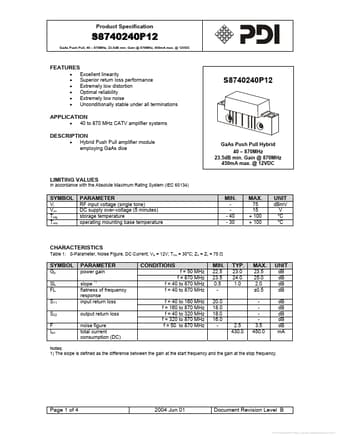

Preview of S8740240P12 PDF

Datasheet Details

Part number:

S8740240P12

Manufacturer:

PDI

File Size:

147.34 KB

Description:

Gaas push pull hybrid.
