PDMP007N065 - 7A 650V N-CHANNEL POWER MOSFET

The PDMP007N065 by PDP Semiconductor is a 7A 650V N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

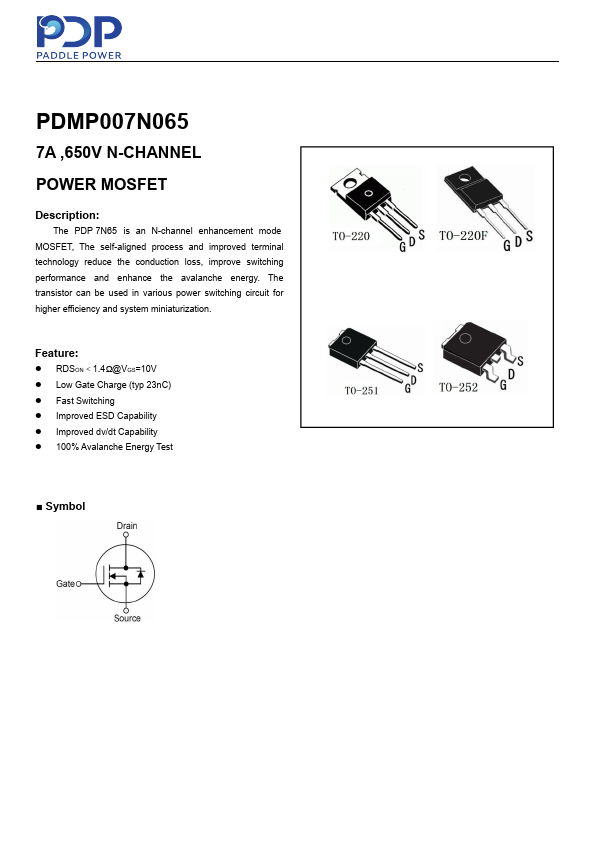

Official preview page of the PDMP007N065 7A 650V N-CHANNEL POWER MOSFET datasheet (PDP Semiconductor).

Datasheet Details

Part number PDMP007N065
Manufacturer PDP Semiconductor
File Size 586.35 KB
Description 7A 650V N-CHANNEL POWER MOSFET
Datasheet download datasheet PDMP007N065-PDPSemiconductor.pdf

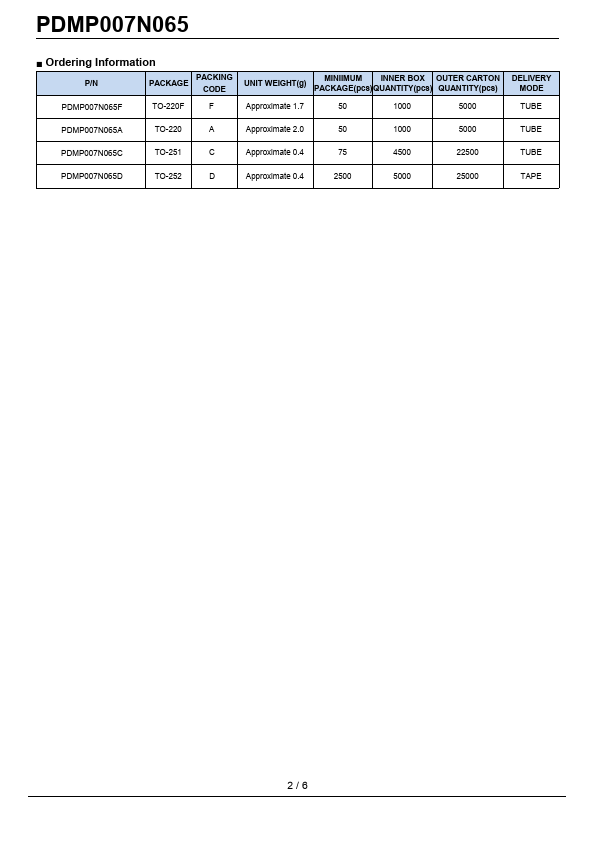

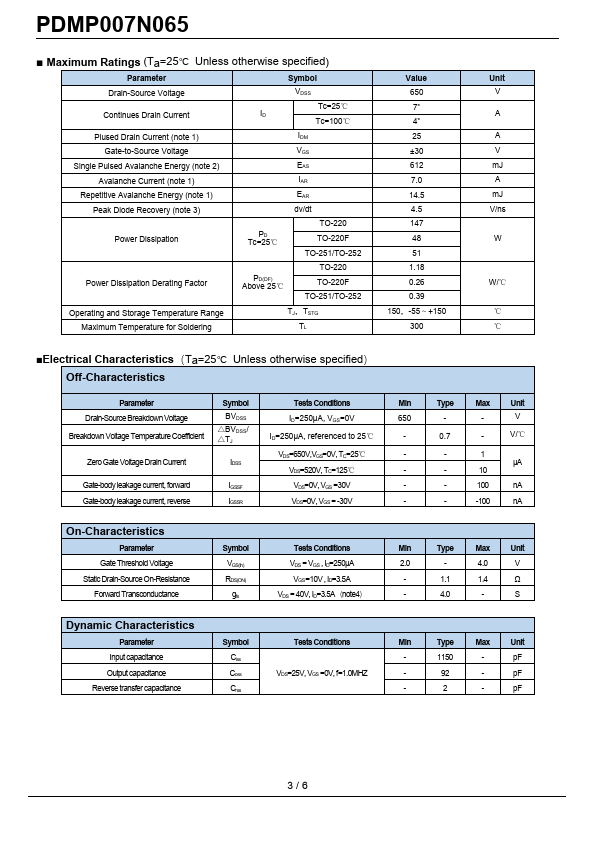

Additional preview pages of the PDMP007N065 datasheet.

PDMP007N065 Product details

Description

The PDP 7N65 is an N-channel enhancement mode MOSFET, The self-aligned process and improved terminal technology reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for higher efficiency and system miniaturization.t 2 Feature: 2 - RDSON＜1.4Ω@VGS=10V B Low Gate Charge (typ 23nC) 1 Fast Switching 0 2 Improved ESD Capability Improved dv/dt Capability
