CPA-0501-510H

SURFACE MOUNT COUPLER

CPA-0501-510H Features

* Frequency Range 5

* 500 MHz Nominal Coupling 10 dB Low Cost and RoHS Compliant Industry Standard SMT package Available in Tape-and -Reel 50 Ohms Characteristic Impedance The CPA-0501-510H coupler is designed for applications that re

CPA-0501-510H General Description

Specifications Parameter Frequency Range (MHz) Coupling (dB) Mainline Loss (dB) Directivity (dB) Return Loss (dB) 20 Minimum 5 9.5 10 0.8 30 23 17.7 Typ Maximum 500 10.5 1.1 Absolute Maximum Ratings Parameter RF Power Operating Temperature Storage Temperature Re-flow Temperature Maximum +33 dBm -5.

CPA-0501-510H Datasheet (98.52 KB)

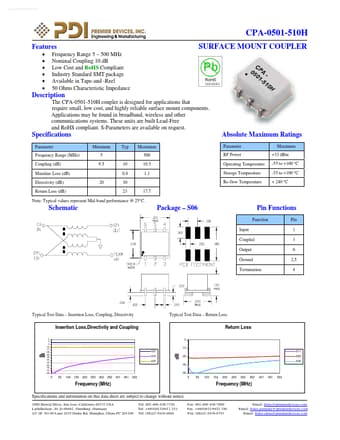

Preview of CPA-0501-510H PDF

Datasheet Details

Part number:

CPA-0501-510H

Manufacturer:

PREMIER DEVICES

File Size:

98.52 KB

Description:

Surface mount coupler.
