CPA-13-6003 Datasheet - Teledyne Technologies

CPA-13-6003 Amplifier

www.DataSheet4U.com CPA-13-6003 Amplifier 6 GHz - 13 GHz This Amplifier offers exceptional performance over the band 6 GHz to 13 GHz with 21.5 dBm P1dB output power and 24 dB Gain. Teledyne Microwave amplifiers are balanced or feedback designs and manufactured with the latest MIC & MMIC technology. The GaAs FET’s used in these amplifiers are well established proven devices from multiple sources. Teledyne Microwave offers a complete line of Narrow and broadband Amplifiers covering the frequenc.

CPA-13-6003_TeledyneTechnologies.pdf

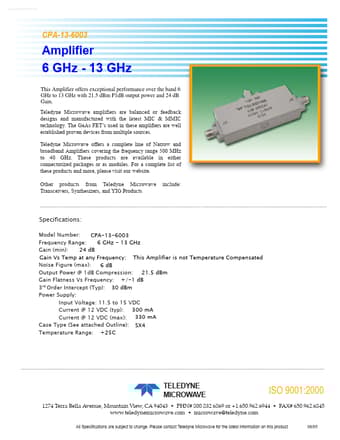

Preview of CPA-13-6003 PDF
CPA-13-6003 Datasheet Preview Page 2

Datasheet Details

Part number:

CPA-13-6003

Manufacturer:

Teledyne Technologies

File Size:

914.88 KB

Description:

Amplifier.
