CPA-1001-716H

SURFACE MOUNT COUPLER

CPA-1001-716H Features

* Frequency Range 1

* 1000 MHz Nominal Coupling 16 dB Low Cost and RoHS Compliant Industry Standard SMT package Available in Tape-and -Reel 75 Ohms Characteristic Impedance The CPA-1001-716H coupler is designed for applications that r

CPA-1001-716H General Description

Specifications Parameter Frequency Range (MHz) Coupling (dB) Mainline Loss (dB) Directivity (dB) Return Loss (dB) 20 Minimum 1 15.4 16 0.8 30 20 14 Typ Maximum 1000 16.6 1.2 Absolute Maximum Ratings Parameter RF Power Operating Temperature Storage Temperature Re-flow Temperature Maximum +33 dBm -5.

CPA-1001-716H Datasheet (99.34 KB)

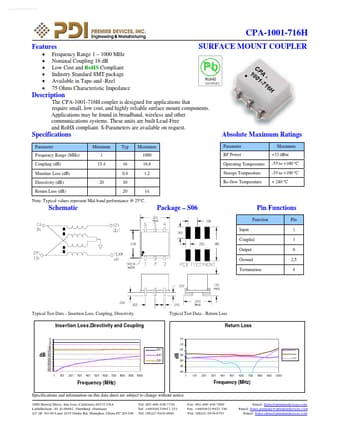

Preview of CPA-1001-716H PDF

Datasheet Details

Part number:

CPA-1001-716H

Manufacturer:

PREMIER DEVICES

File Size:

99.34 KB

Description:

Surface mount coupler.
