PT3921A Single coil Hall Driver

PROLIFIC

PT3921A Description

DC Brushless Motor Hall Driver IC PT3921A Single coil Hall Driver IC Applications Single coil DC brushless motor Support pre-driver application Pack.

PT3921A Features

* Built-in hall sensor Single phase full wave driver Soft switching output driver Motor locked protection and automatic restart Built-in hysteresis comparator Built-in zener diode High balance and low thermal drift magnetic sensing Low power consumption and high driving efficiency Specifications ℃ Abs

📥 Download Datasheet

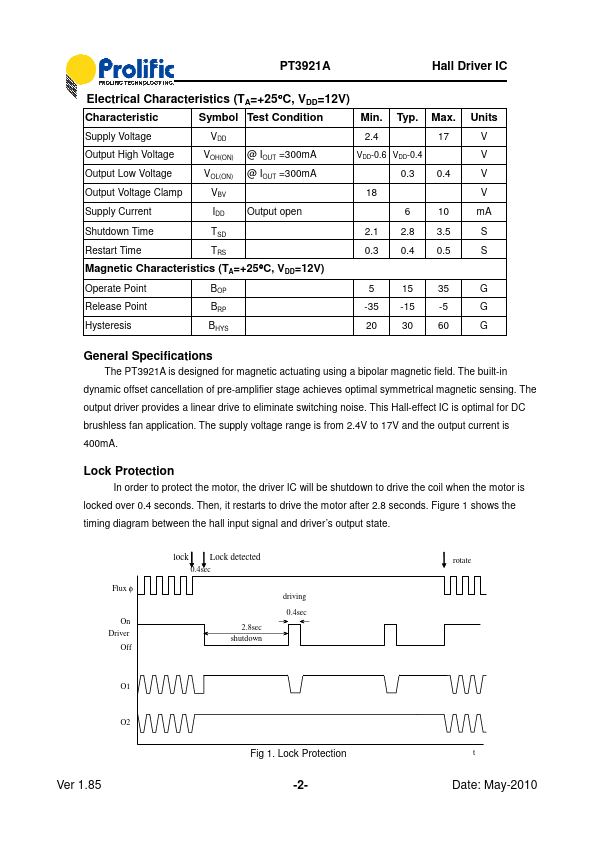

PT3921A Datasheet Preview — Preview of PT3921A PDF

Datasheet Details

Part number: PT3921A
Manufacturer: PROLIFIC
File Size: 0.97 MB
Datasheet: PT3921A-PROLIFIC.pdf
Description: Single coil Hall Driver
