PT3925 - Single coil Hall Driver

Product Overview

PROLIFIC

📥 Download Datasheet

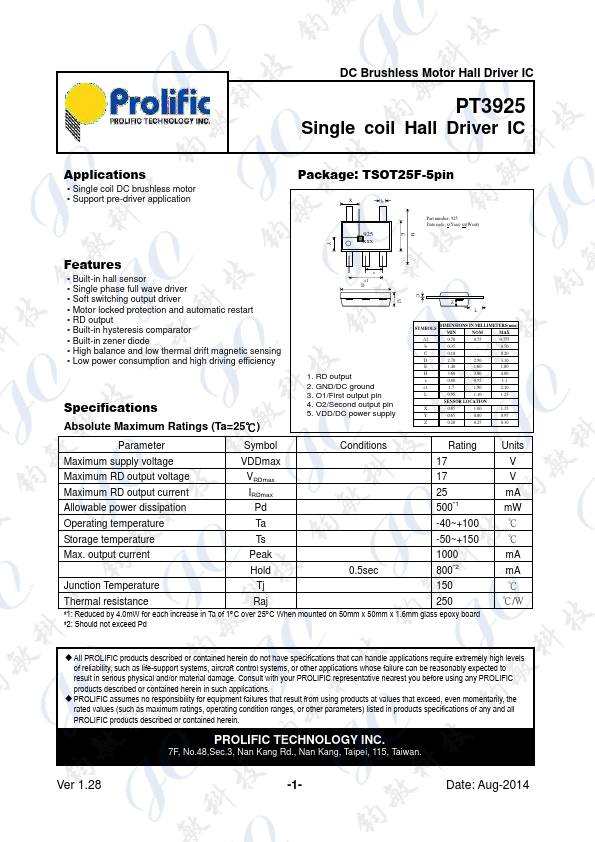

PT3925 Single coil Hall Driver by PROLIFIC - Datasheet Preview — Datasheet preview – PT3925

Datasheet Details

Part number	PT3925
Manufacturer	PROLIFIC
File Size	455.06 KB
Description	Single coil Hall Driver
Datasheet	PT3925 Datasheet

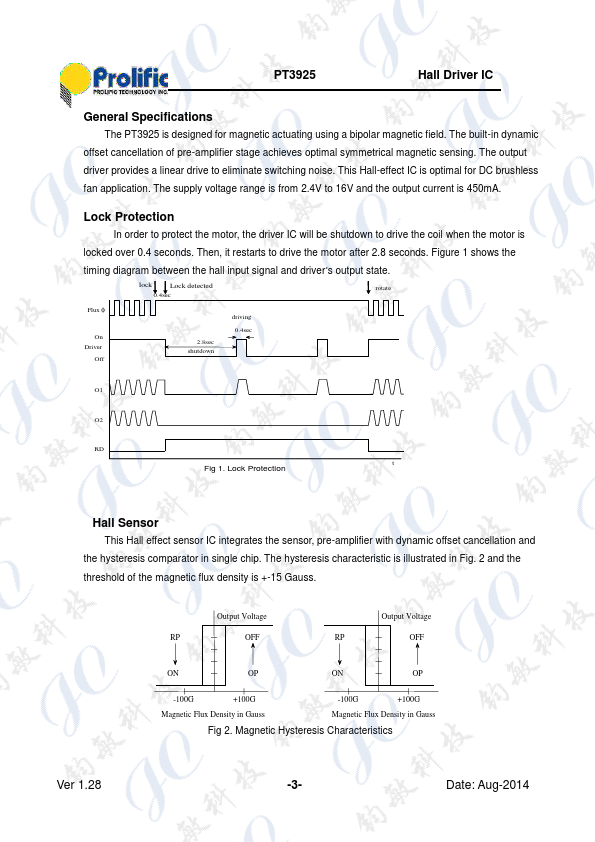

Additional preview pages of the PT3925 datasheet.

Product details

Features

Built-in hall sensor.
Single phase full wave driver.
Soft switching output driver.
Motor locked protection and automatic restart.
RD output.
Built-in hysteresis comparator.
Built-in zener diode.
High balance and low thermal drift magnetic sensing.
Low power consumption and high driving efficiency Specifications Absolute Maximum Ratings (Ta=25℃) e e1 D 1. RD output 2. GND/DC ground 3. O1/First output pin 4. O2/Second output pin 5. VDD/DC power supply.
