PT392V-A - Single-phase Motor Driver

Product Overview

PROLIFIC

📥 Download Datasheet

PT392V-A Single-phase Motor Driver by PROLIFIC - Datasheet Preview — Datasheet preview – PT392V-A

Datasheet Details

Part number	PT392V-A
Manufacturer	PROLIFIC
File Size	1.55 MB
Description	Single-phase Motor Driver
Datasheet	PT392V-A Datasheet

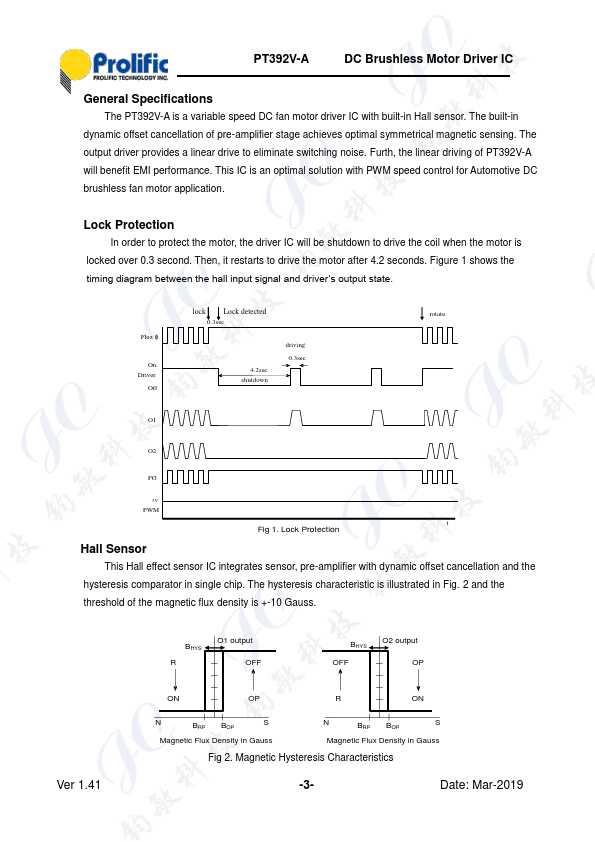

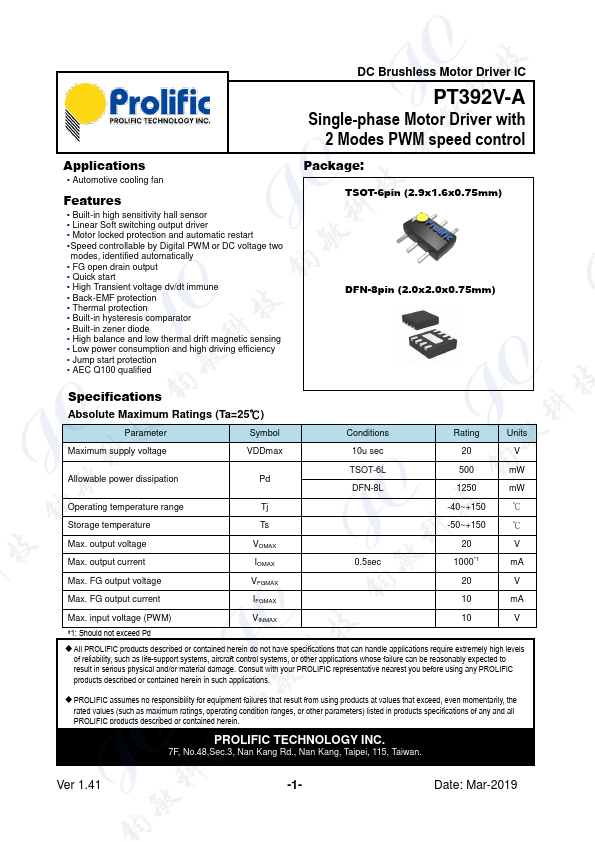

Additional preview pages of the PT392V-A datasheet.

Product details

Features

Built-in high sensitivity hall sensor.
Linear Soft switching output driver.
Motor locked protection and automatic restart.
Speed controllable by Digital PWM or DC voltage two modes, identified automatically.
FG open drain output.
Quick start.
High Transient voltage dv/dt immune.
Back-EMF protection.
Thermal protection.
Built-in hysteresis comparator.
Built-in zener diode.
High balance and low thermal drift magnetic sensing.
Low pow.
