PT392V - All-In-One Single-phase Motor Driver

Product Overview

PROLIFIC

📥 Download Datasheet

PT392V All-In-One Single-phase Motor Driver by PROLIFIC - Datasheet Preview — Datasheet preview – PT392V

Datasheet Details

Part number	PT392V
Manufacturer	PROLIFIC
File Size	891.89 KB
Description	All-In-One Single-phase Motor Driver
Datasheet	PT392V Datasheet

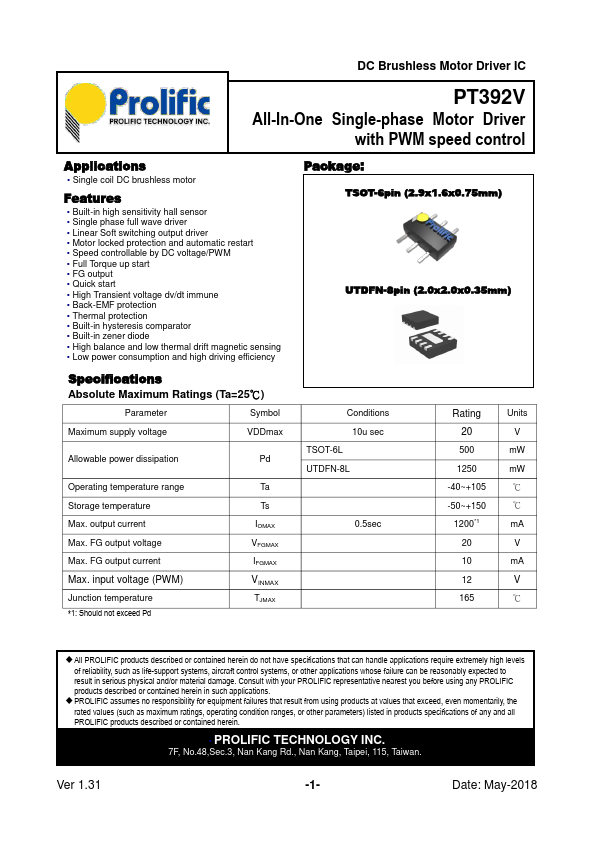

Additional preview pages of the PT392V datasheet.

Product details

Features

Built-in high sensitivity hall sensor.
Single phase full wave driver.
Linear Soft switching output driver.
Motor locked protection and automatic restart.
Speed controllable by DC voltage/PWM.
Full Torque up start.
FG output.
Quick start.
High Transient voltage dv/dt immune.
Back-EMF protection.
Thermal protection.
Built-in hysteresis comparator.
Built-in zener diode.
High balance and low thermal drift magnetic sensing.
L.
