PT2502 Datasheet - PTC

3-Phase Sensor-less BLDC Motor Controller

PT2502 Features

* 3-phase sensor-less BLDC control

* Internal +5V regulator and 5V

* 24V power application

* Internal OTP write support for motor parameters

* I2C interface for parameter setting

* Over-current protection and over-voltage protection

* Thermal protection function with

PT2502 General Description

PT2502 is an integrated 12V 3-phase sensor-less (no Hall sensor required) BLDC motor controller. Threephase motor control with square/trapezoidal wave is based on detecting a zero-crossing signal generated from the motor back-EMF (BEMF) and provides robust control stability that is not easily affect.

PT2502 Datasheet (1.53 MB)

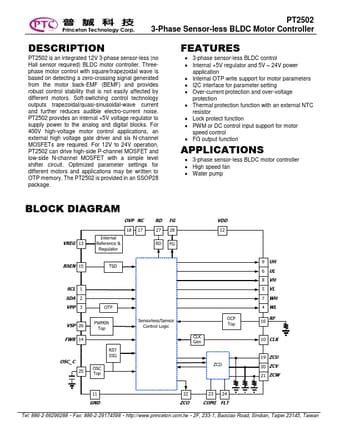

PT2502 Datasheet Preview — Preview of PT2502 PDF

Datasheet Details

Part number:

PT2502

Manufacturer:

PTC

File Size:

1.53 MB

Description:

3-phase sensor-less bldc motor controller.
