PT2513 - Sensorless Sinusoidal BLDC Driver

Product Overview

PTC

PT2513 Sensorless Sinusoidal BLDC Driver by PTC - Datasheet Preview — Datasheet preview – PT2513

Datasheet Details

Part number	PT2513
Manufacturer	PTC
File Size	554.76 KB
Description	Sensorless Sinusoidal BLDC Driver
Datasheet	PT2513 Datasheet

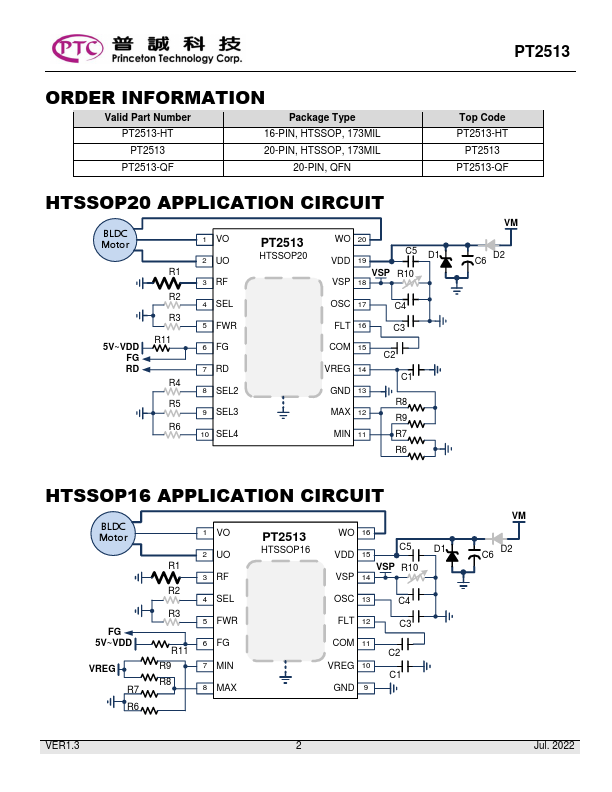

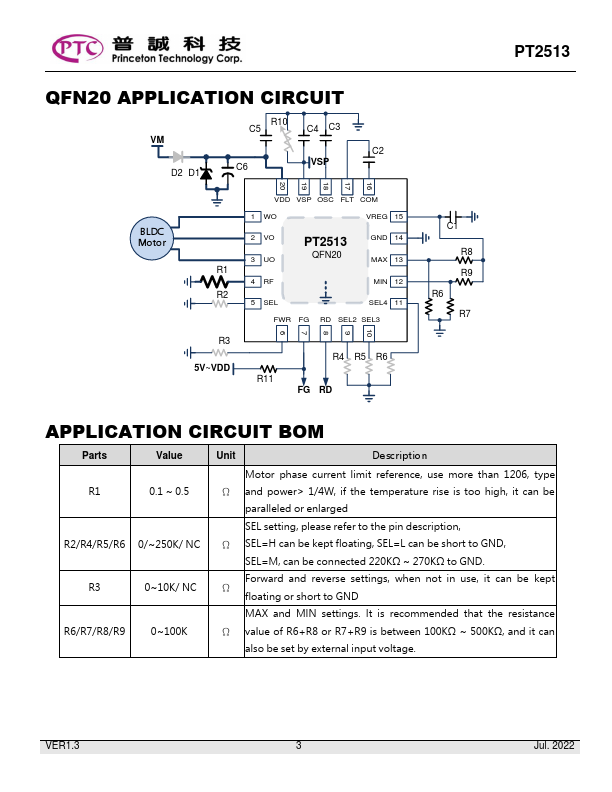

Additional preview pages of the PT2513 datasheet.

Product details

Description

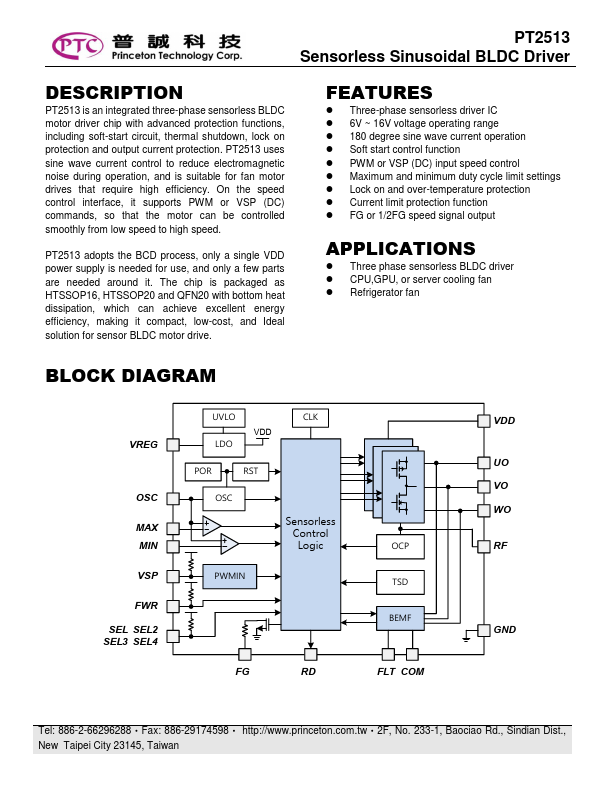

PT2513 is an integrated three-phase sensorless BLDC motor driver chip with advanced protection functions, including soft-start circuit, thermal shutdown, lock on protection and output current protection.

Features

Three-phase sensorless driver IC.
6V ~ 16V voltage operating range.
180 degree sine wave current operation.
Soft start control function.
PWM or VSP (DC) input speed control.
Maximum and minimum duty cycle limit settings.
Lock on and over-temperature protection.
Current limit protection function.
FG or 1/2FG speed signal output.
