PAN301A - CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR

Product Overview

PXI

PAN301A CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR by PXI - Datasheet Preview — Datasheet preview – PAN301A

Datasheet Details

Part number	PAN301A
Manufacturer	PXI
File Size	840.07 KB
Description	CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR
Datasheet	PAN301A Datasheet

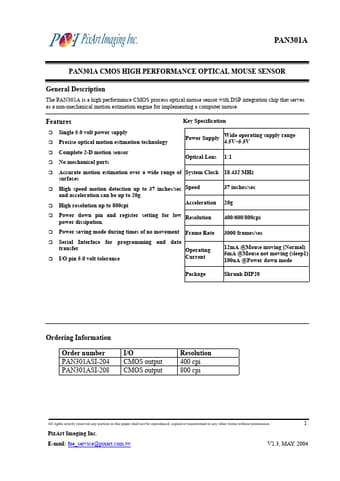

Additional preview pages of the PAN301A datasheet.

Product details

Description

The PAN301A is a high performance CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

Single 5.0 volt power supply Precise optical motion estimation technology Complete 2-D motion sensor No mechanical parts Key Specification Power Supply Optical Lens Wide operating supply range 4.5V~5.5V 1:1 Accurate motion estimation over a wide range of System Clock 18.432 MHz surfaces High speed motion detection up to 37 inches/sec Speed and acceleration can be up to 20g Acceleration High resolution up to 800cpi Power down pin and register setting for low Resolution power dissipation. Power.
