PAN3101

LOW COST CMOS OPTICAL MOUSE SENSOR

PAN3101 Features

* ‰ Single 5.0 volt power supply ‰ Precise optical motion estimation technology ‰ Complete 2-D motion sensor ‰ No mechanical parts Key Specification Power Supply Wide operating supply range 4.25V~5.5V Optical Lens 1:1 ‰ Accurate motion estimation over a wide range of surfaces System Clock 18.4

PAN3101 Datasheet (477.42 KB)

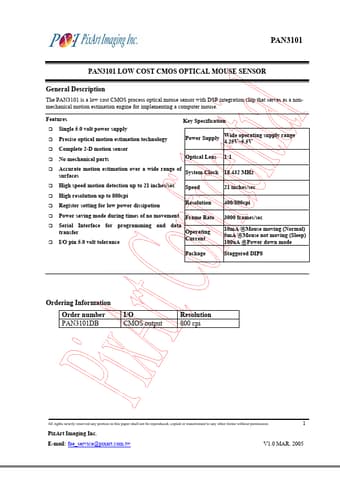

Preview of PAN3101 PDF

Datasheet Details

Part number:

PAN3101

Manufacturer:

PXI

File Size:

477.42 KB

Description:

Low cost cmos optical mouse sensor.
