PAN3204DB - LOW COST WIRELESS MOUSE SENSOR

Product Overview

PXI

PAN3204DB LOW COST WIRELESS MOUSE SENSOR by PXI - Datasheet Preview — Datasheet preview – PAN3204DB

Datasheet Details

Part number	PAN3204DB
Manufacturer	PXI
File Size	565.90 KB
Description	LOW COST WIRELESS MOUSE SENSOR
Datasheet	PAN3204DB Datasheet

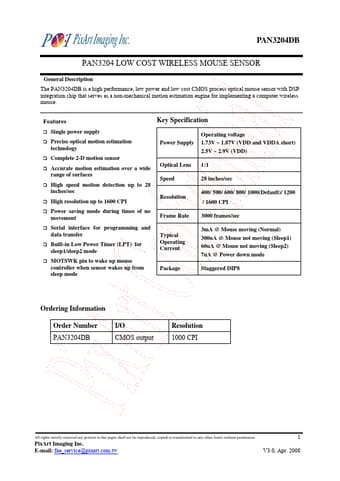

Additional preview pages of the PAN3204DB datasheet.

Product details

Description

The PAN3204DB is a high performance, low power and low cost CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer wireless mouse.

Features

Key Specification Single power supply Precise optical motion estimation technology Complete 2-D motion sensor Accurate motion estimation over a wide range of surfaces High speed motion detection up to 28 inches/sec High resolution up to 1600 CPI Power Supply Operating voltage 1.73V ~ 1.87V (VDD and VDDA short) 2.5V ~ 2.9V (VDD) Optical Lens 1:1 Speed 28 inches/sec Resolution 400/ 500/ 600/ 800/ 1000(Default)/ 1200 / 1600 CPI Power saving mode during times of no movement.
