PT0181216-A003 128 x RGB x 160 DOTS DISPLAY

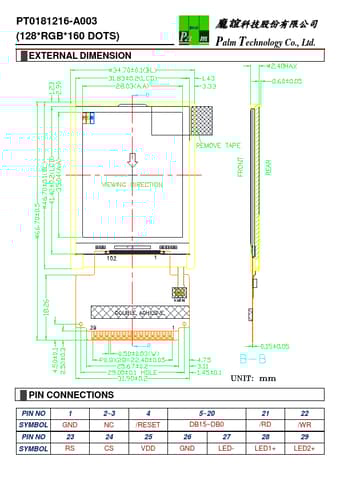

PT0181216-A003 (128 RGB 160 DOTS) ▓ EXTERNAL DIMENSION Palm Technology Co., Ltd. ▓ PIN CONNECTIONS PIN NO SYMBOL PIN NO SYMBOL 1 GND 23 RS 2~3 NC 24 CS 4 /RESET 25 VDD 26 GND 5~20 DB15~DB0 27 LED21 /RD 28 LED1+ 22 /WR 29 LED2+ .

PT0181216-A003-PalmTechnology.pdf

Preview of PT0181216-A003 PDF

Datasheet Details

Part number:

PT0181216-A003

Manufacturer:

Palm Technology

File Size:

143.06 KB

Description:

128 x rgb x 160 dots display.
