PT0181216-A702 Datasheet - Palm Technology

PT0181216-A702 128 x RGB x 160 DOTS DISPLAY

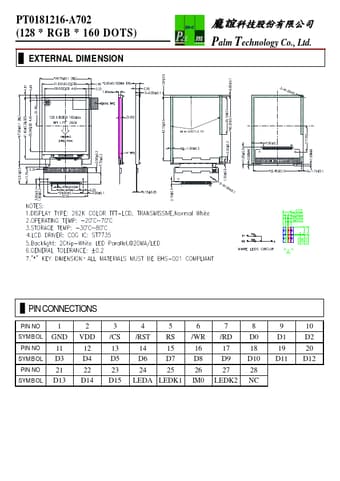

PT0181216-A702 (128 RGB 160 DOTS) ▉ EXTERNAL DIMENSION Palm Technology Co., Ltd. 3M 9448W(T=0.15) ▉ PIN CONNECTIONS PIN NO SYM BOL PIN NO SYM BOL PIN NO SYM BOL 1 GND 11 D3 21 D13 2 VDD 12 D4 22 D14 3 /CS 13 D5 23 D15 4 /RST 5 RS 15 D7 6 /WR 16 D8 26 IM0 7 /RD 17 D9 27 LEDK2 8 D0 18 D10 28 NC 9 D1 19 D11 10 D2 20 D12 14 D6 24 25 LEDA LEDK1 .

PT0181216-A702-PalmTechnology.pdf

Preview of PT0181216-A702 PDF

Datasheet Details

Part number:

PT0181216-A702

Manufacturer:

Palm Technology

File Size:

202.54 KB

Description:

128 x rgb x 160 dots display.
