PT0201722-A402 176 x RGB x 220 DOTS DISPLAY

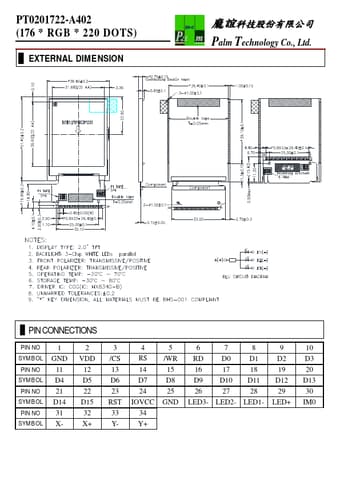

PT0201722-A402 (176 RGB 220 DOTS) ▉ EXTERNAL DIMENSION (Containing Double tape) Palm Technology Co., Ltd. （） Soldering Altitude 0.4Max ▉ PIN CONNECTIONS PIN NO SYM BOL PIN NO SYM BOL PIN NO SYM BOL PIN NO SYM BOL 1 GND 11 D4 21 D14 31 X- 2 VDD 12 D5 22 D15 32 X+ 3 /CS 13 D6 23 RST 33 Y- 4 RS 5 /WR 15 D8 25 GND 6 RD 16 D9 7 D0 17 D10 8 D1 18 D11 9 D2 19 D12 29 LED+ 10 D3 20 D13 30 IM0 14 D7 24 IOVCC 34 Y+ 26 27 28 LED3- LED2- LED1- .

PT0201722-A402-PalmTechnology.pdf

PT0201722-A402 Datasheet Preview — Preview of PT0201722-A402 PDF

Datasheet Details

Part number:

PT0201722-A402

Manufacturer:

Palm Technology

File Size:

189.58 KB

Description:

176 x rgb x 220 dots display.
