PT0201722-B606 Datasheet - Palm Technology

PT0201722-B606 176 x RGB x 220 DOTS DISPLAY

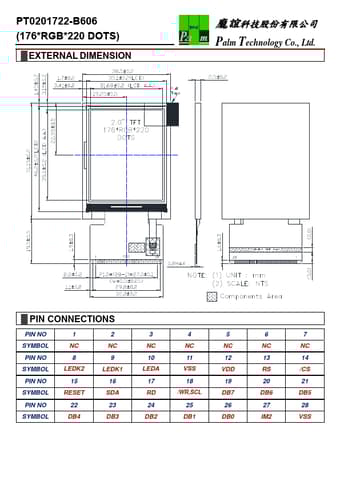

PT0201722-B606 (176 RGB 220 DOTS) ▓ EXTERNAL DIMENSION Palm Technology Co., Ltd. ▓ PIN CONNECTIONS PIN NO SYMBOL PIN NO SYMBOL PIN NO SYMBOL PIN NO SYMBOL 1 NC 8 LEDK2 15 RESET 22 DB4 2 NC 9 LEDK1 16 SDA 23 DB3 3 NC 10 LEDA 17 RD 24 DB2 4 NC 11 VSS 18 /WR,SCL 5 NC 12 VDD 19 DB7 26 DB0 6 NC 13 RS 20 DB6 27 IM2 7 NC 14 /CS 21 DB5 28 VSS 25 DB1 .

PT0201722-B606-PalmTechnology.pdf

Preview of PT0201722-B606 PDF

Datasheet Details

Part number:

PT0201722-B606

Manufacturer:

Palm Technology

File Size:

141.81 KB

Description:

176 x rgb x 220 dots display.
