PT0222432-A801 Datasheet - Palm Technology

PT0222432-A801 240 X RGB X 320 DOTS DISPLAY

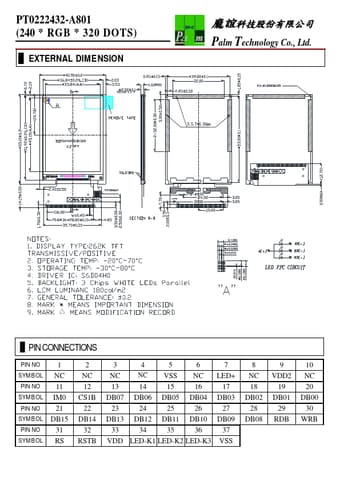

PT0222432-A801 (240 RGB 320 DOTS) ▉ EXTERNAL DIMENSION Palm Technology Co., Ltd. △ ▉ PIN CONNECTIONS PIN NO SYM B OL PIN NO SYM B OL PIN NO SYM B OL PIN NO SYM B OL 1 NC 11 IM0 21 DB15 31 RS 2 NC 12 CS1B 22 DB14 32 RSTB 3 4 5 6 7 NC NC VSS NC LED+ 13 14 15 16 17 DB07 DB06 DB05 DB04 DB03 23 24 25 26 27 DB13 DB12 DB11 DB10 DB09 33 34 35 36 37 VDD LED-K1 LED-K2 LED-K3 VSS 8 NC 18 DB02 28 DB08 9 VDD2 19 DB01 29 RDB 10 NC 20 DB00 30 WRB .

PT0222432-A801-PalmTechnology.pdf

Preview of PT0222432-A801 PDF

Datasheet Details

Part number:

PT0222432-A801

Manufacturer:

Palm Technology

File Size:

185.09 KB

Description:

240 x rgb x 320 dots display.
