PT0201722-B301 Datasheet - Palm Technology

PT0201722-B301 176 x RGB x 220 DOTS DISPLAY

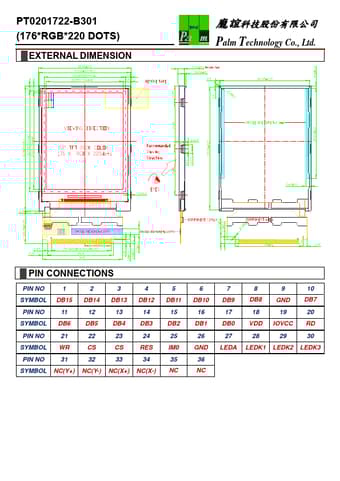

PT0201722-B301 (176 RGB 220 DOTS) ▓ EXTERNAL DIMENSION Palm Technology Co., Ltd. - + ▓ PIN CONNECTIONS PIN NO SYMBOL PIN NO SYMBOL PIN NO SYMBOL PIN NO SYMBOL 1 DB15 11 DB6 21 WR 31 NC(Y+) 2 DB14 12 DB5 22 CS 32 NC(Y-) 3 DB13 13 DB4 23 CS 33 NC(X+) 4 DB12 14 DB3 24 RES 34 NC(X-) 5 DB11 15 DB2 25 IM0 35 NC 6 DB10 16 DB1 26 GND 36 NC 7 DB9 17 DB0 27 LEDA 8 DB8 18 VDD 28 LEDK1 9 GND 19 IOVCC 29 LEDK2 10 DB7 20 RD 30 LEDK3 .

PT0201722-B301-PalmTechnology.pdf

Preview of PT0201722-B301 PDF

Datasheet Details

Part number:

PT0201722-B301

Manufacturer:

Palm Technology

File Size:

183.26 KB

Description:

176 x rgb x 220 dots display.
