2SC5517

NPN Transistor

2SC5517 Features

* High breakdown voltage, and high reliability through the use of a glass passivation layer

* High-speed switching

* Wide area of safe operation (ASO) 5˚ (4.0) 5˚ 2.0±0.2 5˚ / 1.1±0.1 0.7±0.1 I Absolute Maximum Ratings TC = 25°C 5.45±0.3 e ) Parameter Symbol Rati

2SC5517 Datasheet (200.68 KB)

Preview of 2SC5517 PDF

Datasheet Details

Part number:

2SC5517

Manufacturer:

Panasonic Semiconductor

File Size:

200.68 KB

Description:

Npn transistor.

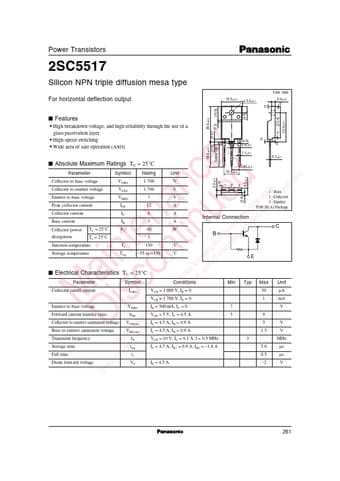

Power Transistors 2SC5517 Silicon NPN triple diffusion mesa type For horizontal deflection output 15.5±0.5 φ 3.2±0.1 Unit: mm 3.0±0.3 5˚ 5˚ (4.5).
