2SC5511

Transistors

2SC5511 Features

* 1) Electrical characteristics of DC current gain hFE is flat. 2) High breakdown voltage. (BVCEO=160V(Min.), at IC=1mA) 3) High fT. (Typ. 150MHz, at VCE=10V, IE=

* 0.2A, f=100MHz) 4) Wide SOA. (1)Base (2)Collector (3)Emitter 15.0 12.0 8.0 5.0 1.2 1.3 14.0 0.8 2.54 (1) (2) (3) 2.54 0.75

2SC5511 Datasheet (91.13 KB)

Preview of 2SC5511 PDF

Datasheet Details

Part number:

2SC5511

Manufacturer:

ROHM ↗

File Size:

91.13 KB

Description:

Transistors.

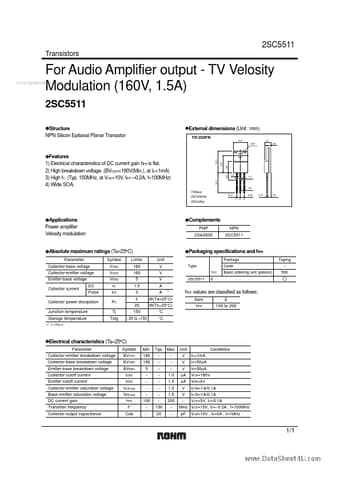

2SC5511 Transistors www.datasheet4u.com For Audio Amplifier output - TV Velosity Modulation (160V, 1.5A) 2SC5511 zExternal dimensions (Unit : mm) TO.
