2SC5053 - Medium Power Transistor

Product Overview

Rohm

Part number	2SC5053
Manufacturer	ROHM
File Size	71.51 KB
Description	Medium Power Transistor
Datasheet	2SC5053 Datasheet

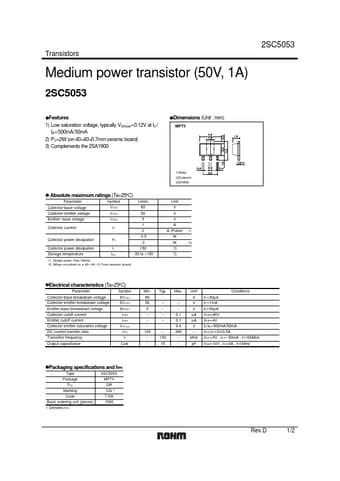

Additional preview pages of the 2SC5053 datasheet.

1) Low saturation voltage, typically VCE(sat)=0.12V at IC/ IB=500mA/50mA 2) PC=2W (on 40×40×0.7mm ceramic board) 3) Complements the 2SA1900 zDimensions (Unit : mm) MPT3 z Absolute maximum ratings (Ta=25°C) Parameter Symbol Limits Collector-base voltage Collector-emitter voltage VCBO VCEO 60 50 Emitter- base voltage VEBO 5 Collector current 1 IC 2 Collector power dissipation PC 0.5 2 Collector power dissipation tj 150 Storage temperature tstg.
55 to +150 ∗1 Single pu.
