Part number:
2SD2357
Manufacturer:
Panasonic Semiconductor
File Size:
36.02 KB
Description:
Silicon npn transistor.

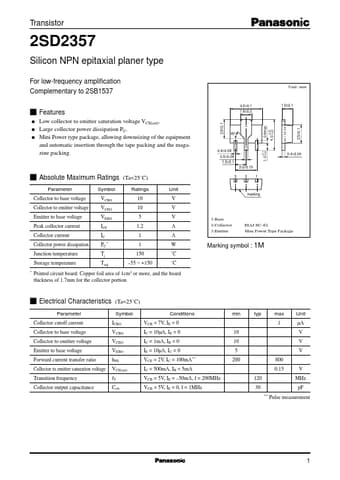

* 2.6±0.1 4.5±0.1 1.6±0.2 1.5±0.1 q q q 1.0
* 0.2 +0.1 Low collector to emitter saturation voltage VCE(sat). Large collector power dissipation PC. Mini Power type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. 0.4ma
2SD2357
Panasonic Semiconductor
36.02 KB
Silicon npn transistor.
