Part number:
2SD2353
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
835.72 KB
Description:
Silicon npn transistor.

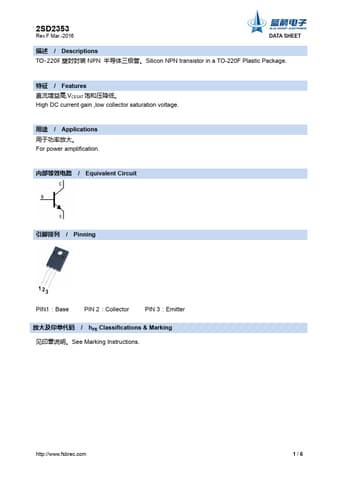

* ,VCESAT 。 High DC current gain ,low collector saturation voltage. / Applications 。 For power amplification. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 。See Marking Instructions. http://www.fsbrec.com 1/6 2SD2353 Rev.F
2SD2353
BLUE ROCKET ELECTRONICS
835.72 KB
Silicon npn transistor.
