2SK3192, N-Channel MOSFET

Power MOSFETs 2SK3192 Silicon N-channel power MOSFET Unit: mm (0.7) * .

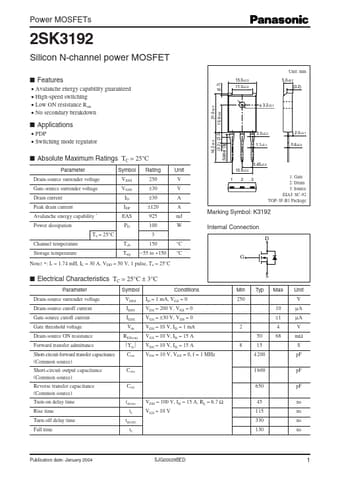

datasheet Preview Page 1 from Datasheet4u.com

2SK3192_PanasonicSemiconductor.pdf

2SK3192 Datasheet Preview — Preview of 2SK3192 PDF

Datasheet Details

Part number:

2SK3192

Manufacturer:

Panasonic Semiconductor

File Size:

93.27 KB

Description:

N-Channel MOSFET

Features

* Avalanche energy capability guaranteed
* High-speed switching
* Low ON resistance Ron
* No secondary breakdown 15.0±0.3 11.0±0.2 5.0±0.2 (3.2) 21.0±0.5 φ 3.2±0.1 15.0±0.2

Applications

* PDP
* Switching mode regulator 16.2±0.5 (3.2) (2.3) Solder Dip 2.0±0.2 1.1±0.1 2.0±0.1 0.6±0.2
* Absolute Maximum Ratings TC = 25°C Parameter Drain-source surrender voltage Gate-source surrender voltage Drain current Peak drain current Avalanche energy capability
* Powe
