2SK655 - Silicon N-Channel MOSFET

Product Overview

Panasonic Semiconductor

Part number	2SK655
Manufacturer	Panasonic Semiconductor
File Size	76.37 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK655 Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SK655, 2SK0655. Please refer to the document for exact specifications by model.

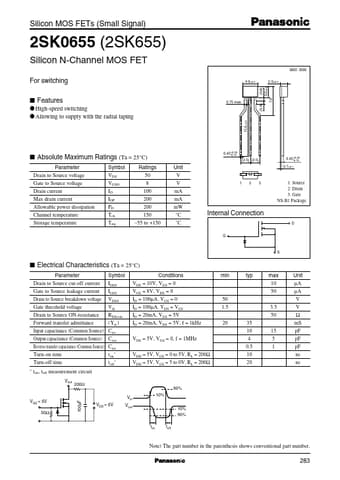

Additional preview pages of the 2SK655 datasheet.

0.75 max. 4.0±0.2 (0.8) 3.0±0.2 2.0±0.2 I Absolute Maximum Ratings (Ta = 25°C) Parameter Drain to Source voltage Gate to Source voltage Drain current Max drain current Allowable power dissipation Channel temperature Storage temperature Symbol VDS VGSO ID IDP PD Tch Tstg Ratings 50 8 100 200 200 150.
55 to +150 Unit V V mA mA mW °C °C 0.45+0.20.
0.10 (2.5) (2.5) 0.45+0.20.
0.10 0.7±0.1 15.6±0.5 G High-speed switching G Allowing to supply with the radial taping (0.8).
