AN33014UA

1-channel DC-DC Step down Regulator integrated N-channel Power MOSFET

AN33014UA Features

* 1-channel DC-DC Step Down Regulator Circuit that employs Voltage Mode Switching Control System

* Current Feedback Function compensates output voltage drop due to external USB cable loss

* Internal reference voltage is within 1.5% accuracy

* Input Voltage Range : PVCC , VCC: 5 V ~

AN33014UA General Description

AN33014UA is 1-channel DC-DC Step down Regulator integrated N-channel Power MOSFET and employs the voltage mode switching control system. This IC can be operated with wide input voltage range and is build in several protection functions, so this IC can provide high reliability power supply system. S.

AN33014UA Datasheet (830.79 KB)

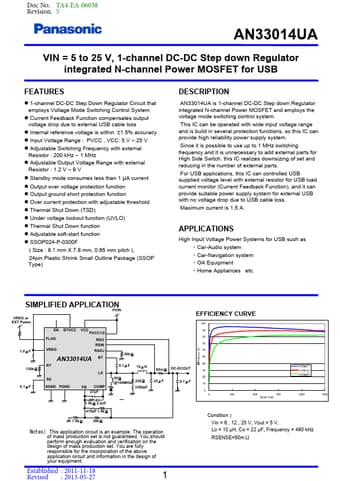

Preview of AN33014UA PDF

Datasheet Details

Part number:

AN33014UA

Manufacturer:

Panasonic Semiconductor

File Size:

830.79 KB

Description:

1-channel dc-dc step down regulator integrated n-channel power mosfet.
