AN33012UA - 2-channel DC-DC Controller IC

Product Overview

Panasonic

Part number	AN33012UA
Manufacturer	Panasonic
File Size	603.55 KB
Description	2-channel DC-DC Controller IC
Datasheet	AN33012UA Datasheet

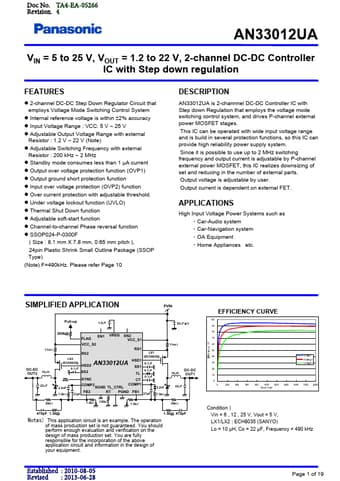

Additional preview pages of the AN33012UA datasheet.

2-channel DC-DC Step Down Regulator Circuit that employs Voltage Mode Switching Control System.
Internal reference voltage is within 2% accuracy.
Input Voltage Range : VCC: 5 V ~ 25 V.
Adjustable Output Voltage Range with external Resistor : 1.2 V ~ 22 V (Note).
Adjustable Switching Frequency with external Resistor : 200 kHz ~ 2 MHz.
Standby mode consumes less than 1 µA current.
Output over voltage protection function (OVP1).
Output ground short protecti.
