AN33013UA - 1-channel DC-DC Step down Regulator integrated N-channel Power MOSFET

Product Overview

Panasonic

Part number	AN33013UA
Manufacturer	Panasonic
File Size	657.36 KB
Description	1-channel DC-DC Step down Regulator integrated N-channel Power MOSFET
Datasheet	AN33013UA Datasheet

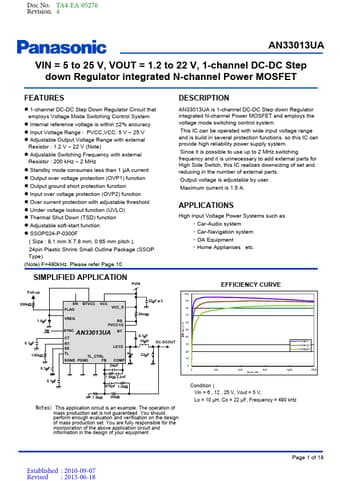

Additional preview pages of the AN33013UA datasheet.

1-channel DC-DC Step Down Regulator Circuit that employs Voltage Mode Switching Control System.
Internal reference voltage is within 2% accuracy.
Input Voltage Range : PVCC,VCC: 5 V ~ 25 V.
Adjustable Output Voltage Range with external Resistor : 1.2 V ~ 22 V (Note).
Adjustable Switching Frequency with external Resistor : 200 kHz ~ 2 MHz.
Standby mode consumes less than 1 µA current.
Output over voltage protection (OVP1) function.
Output ground short pro.
