AN33016UA - 1-channel DC-DC Step down Regulator integrated N-channel Power MOSFET

Product Overview

Panasonic

Part number	AN33016UA
Manufacturer	Panasonic
File Size	881.02 KB
Description	1-channel DC-DC Step down Regulator integrated N-channel Power MOSFET
Datasheet	AN33016UA Datasheet
Additional preview pages of the AN33016UA datasheet.

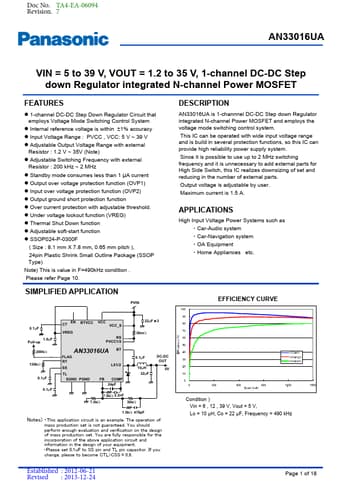

1-channel DC-DC Step Down Regulator Circuit that employs Voltage Mode Switching Control System.
Internal reference voltage is within 1% accuracy.
Input Voltage Range : PVCC , VCC: 5 V ~ 39 V.
Adjustable Output Voltage Range with external Resistor : 1.2 V ~ 35V (Note).
Adjustable Switching Frequency with external Resistor : 200 kHz ~ 2 MHz.
Standby mode consumes less than 1 µA current.
Output over voltage protection function (OVP1).
Input over voltage pro.
