CND0201A

Optical Transmission Module

CND0201A Features

* Conformable to IrDA 1.2a Low Power Type (max. 115.2 kbps) Small size package Receiver latency time (max. 0.1 ms) Conformable to SMD Applications Cellular phone Peripheral devices for personal computers Digital still cameras 8.0±0.3 2.7 2.7 2.8 2-R1.1 6.65 (7-0.95) 0.45 12345678 0.6 0.15 1.75 2.2±

CND0201A Datasheet (30.75 KB)

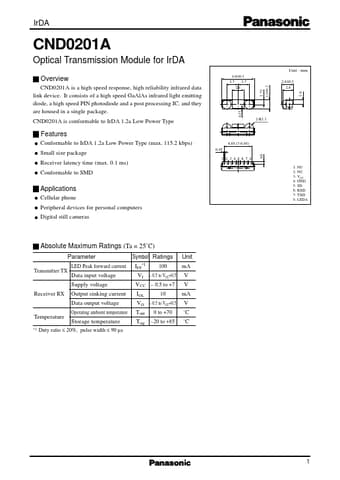

Preview of CND0201A PDF

Datasheet Details

Part number:

CND0201A

Manufacturer:

Panasonic Semiconductor

File Size:

30.75 KB

Description:

Optical transmission module.
IrDA CND0201A Optical Transmission Module for IrDA Overview CND0201A is a high speed response, high reliability infrared data link device. It consists.
