CND2047 Datasheet - United Monolithic Semiconductors

10GHz Frequency Divider by 4 Fixed Modulus Prescaler

CND2047 Features

* ¦ Very broad operating frequency range ¦ Low power dissipation: 300mW ¦ Single supply operation: 3V to 5V ¦ High input sensitivity: -10dBm@8 Ghz at 25°C and -5dBm@8Ghz at 125°C ¦ Low phase noise: -139dBc/Hz at 1KHz SOIC8 plastic package Main Characteristics Tamb= +25°C Symbol Parameter Vdd Drai

CND2047 General Description

The CND2047 is a low power consumption very high speed divider by 4 GaAs prescaler manufactured with a 0.7µm self aligned implanted MESFET process. The design is full differential input/output that allows direct drive into 50Ω load. 2047 The CND2047 is available in chip form and in 2 packages for.

CND2047 Datasheet (146.69 KB)

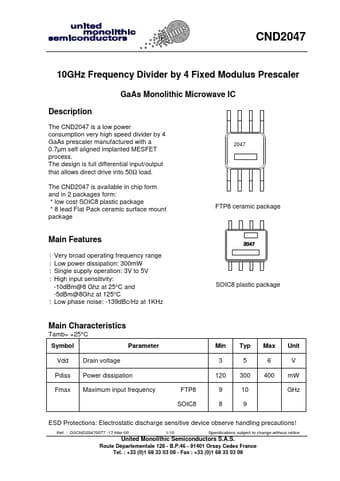

CND2047 Datasheet Preview — Preview of CND2047 PDF

Datasheet Details

Part number:

CND2047

Manufacturer:

United Monolithic Semiconductors

File Size:

146.69 KB

Description:

10ghz frequency divider by 4 fixed modulus prescaler.
