CND2047-DAG

GaAs Monolithic Microwave IC

CND2047-DAG Features

* Very broad operating frequency range Low power dissipation: 300mW Single supply operation: 3V to 5V Low phase noise: -139dBc/Hz at 1KHz Main Characteristics Tamb= +25°C Symbol Parameter Vdd Drain voltage Pdiss Power dissipation Fmax Maximum input frequency Min Typ Max Unit 356V 120 300 400

CND2047-DAG General Description

The CND2047 is a low power consumption very high speed divider by 4 GaAs prescaler manufactured with a 0.7µm self aligned implanted MESFET process. The design is full differential input/output that allows direct drive into 50Ω load. The CND2047 is available in a low cost SOIC8 RoHS compliant plasti.

CND2047-DAG Datasheet (110.11 KB)

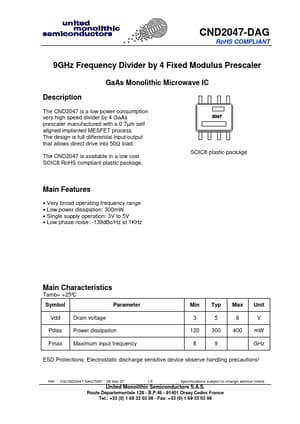

Preview of CND2047-DAG PDF

Datasheet Details

Part number:

CND2047-DAG

Manufacturer:

United Monolithic Semiconductors

File Size:

110.11 KB

Description:

Gaas monolithic microwave ic.
