CND2050 Datasheet, Prescaler, United Monolithic Semiconductors

CND2050 Features

  • Prescaler Very broad operating frequency range Low power dissipation: 250mW Single supply operation:+ 5V or
      –5V High input sensitivity: -10dBm@10 GHz at 25°C Low phase noise: -139

PDF File Details

Part number:

CND2050

Manufacturer:

United Monolithic Semiconductors

File Size:

81.96kb

Download:

📄 Datasheet

Description:

0.5-11.5 ghz divide by 4 static prescaler. The CND2050 is a low power consumption and very high speed divider by 4 manufactured with a 0.6µm GaAs self aligned implanted MESFET

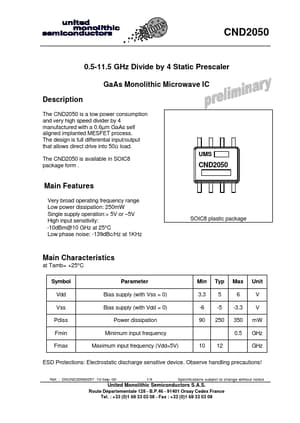

Datasheet Preview: CND2050 📥 Download PDF (81.96kb)
Page 2 of CND2050 Page 3 of CND2050
