D2504 - 2SD2504

Product Overview

Panasonic Semiconductor

Part number	D2504
Manufacturer	Panasonic Semiconductor
File Size	86.73 KB
Description	2SD2504
Datasheet	D2504 Datasheet

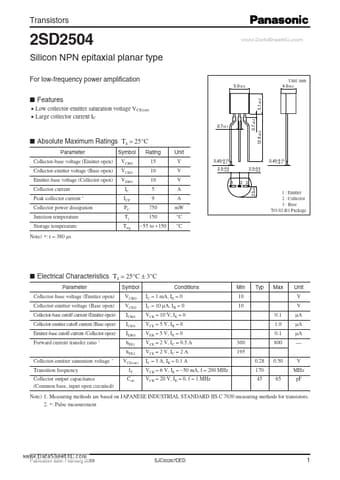

Additional preview pages of the D2504 datasheet.

s.
Low collector-emitter saturation voltage VCE(sat).
Large collector current IC.
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Collector current Peak collector current.
Collector power dissipation Junction temperature Storage temperature VCBO VCEO VEBO IC ICP PC Tj Tstg 15 10 10 5 9 750 150.
55 to +150 Note).
: t = 380 µs.
