MN655431SH Datasheet, Processing, Panasonic Semiconductor

MN655431SH Features

  • Processing Maximum conversion rate: 15 MSPS (min.) Linearity error: ±0.5 LSB (typ.) Differential linearity error: ±0.4 LSB (typ.) Power supply voltage: 4.40 to 5.25 V Power consumption: 90 mW (typ

PDF File Details

Part number:

MN655431SH

Manufacturer:

Panasonic Semiconductor

File Size:

49.83kb

Download:

📄 Datasheet

Description:

Low power 8-bit cmos a/d converter for image processing. Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Symbol DVDDL DVSS D0 D1 D2 D3 D4 D5 D6 D7 DVDD CLK DVDD AVDD

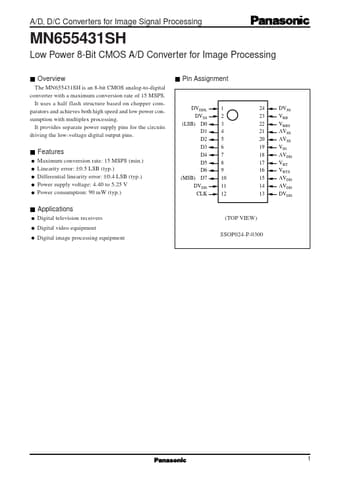

Datasheet Preview: MN655431SH 📥 Download PDF (49.83kb)
Page 2 of MN655431SH Page 3 of MN655431SH

MN655431SH Application

  • Applications Digital television receivers Digital video equipment Digital image processing equipment SSOP024-P-0300 (TOP VIEW) 1 MN655431SH Block
