MN65543S Datasheet - Panasonic Semiconductor

MN65543S Low Power 8-Bit CMOS A/D Converter for Image Processing

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Symbol NOE DVSS D0 D1 D2 D3 D4 D5 D6 D7 DVDD CLK DVDD AVDD AVDD VRTS VRT AVDD VIN AVSS AVSS VRBS VRB DVSS Function Description Output enable Ground for digital circuits Digital output (LSB) Digital output Digital output Digital .

MN65543S Features

* Maximum conversion rate: 15 MSPS (min.) Linearity error: ±0.5 LSB (typ.) Differential linearity error: ±0.3 LSB (typ.) Power supply voltage: 4.40 to 5.25 V Power consumption: 90 mW (typ.) Applications Digital television receivers Digital video equipment Digital image processing equipment NOE DVSS

MN65543S_PanasonicSemiconductor.pdf

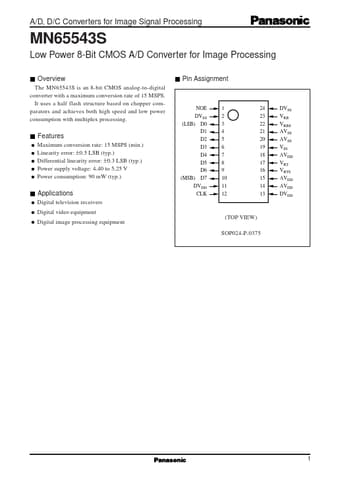

Preview of MN65543S PDF
MN65543S Datasheet Preview Page 2 MN65543S Datasheet Preview Page 3

Datasheet Details

Part number:

MN65543S

Manufacturer:

Panasonic Semiconductor

File Size:

49.63 KB

Description:

Low power 8-bit cmos a/d converter for image processing.
