MN6556A Low Power 8-Bit CMOS D/A Converters for Image Processing

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Symbol AVDD AVDD IO VC VIB COMP VREF IREF AVSS N.C. N.C. DVDD CLK DB1 DB2 DB3 DB4 DB5 DB6 DB7 DB8 DVSS Function Description Power supply for analog circuits Power supply for analog circuits Analog current output Capacitor connection C.

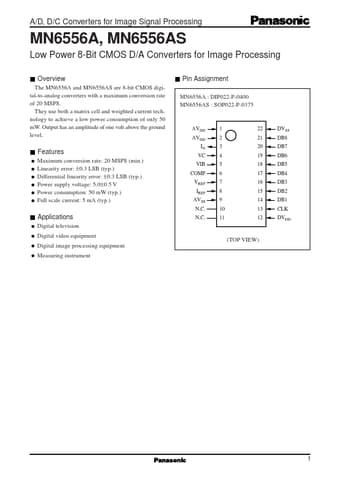

A/D, D/C Converters for Image Signal Processing MN6556A, MN6556AS Low Power 8-Bit CMOS D/A Converters for Image Processing Overview The MN6556A and MN6556AS are 8-bit CMOS digital-to-analog converters with a maximum conversion rate of 20 MSPS. They use both a matrix cell and weighted current technology to achieve a low power consumption of only 50 mW. Output has an amplitude of one volt above the ground level. Pin Assignment MN6556A : DIP022-P-0400 MN6556AS : SOP022-P-0375 AVDD AVDD IO VC VIB.

MN6556A Features

* Maximum conversion rate: 20 MSPS (min.) Linearity error: ±0.3 LSB (typ.) Differential linearity error: ±0.3 LSB (typ.) Power supply voltage: 5.0±0.5 V Power consumption: 50 mW (typ.) Full scale current: 5 mA (typ.) Applications Digital television Digital video equipment Digital image processing equ

MN6556A_PanasonicSemiconductor.pdf

MN6556A Datasheet Preview — Preview of MN6556A PDF

Datasheet Details

Part number:

MN6556A

Manufacturer:

Panasonic Semiconductor

File Size:

58.22 KB

Description:

Low power 8-bit cmos d/a converters for image processing.
