MN6557A Datasheet - Panasonic Semiconductor

MN6557A Low-Power-Consumption CMOS 10-Bit D/A Converters for Image Processing

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Symbol DVDD AVDD AVDD IREF VREF COMP VIB IOUT AVSS AVSS DVSS D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 CLK Function Description Power supply for digital section Power supply for analog section Power supply for analog section Full-scale adjustmen.

MN6557A Features

* Maximum conversion rate: 30 MSPS (min.) Linearity error: ±0.5 LSB (typ.) Differential linearity error: ±0.3 LSB (typ.) Power supply voltage: 5.0 ±0.5 V Power consumption: 125 mW (typ.) Full-scale current: 13 mA (typ.) Applications Digital TV Digital video Digital signal processing equipment ( TOP

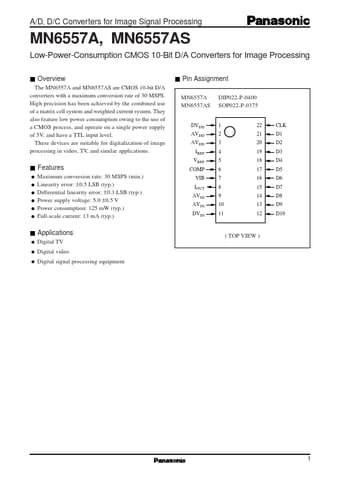

MN6557A_PanasonicSemiconductor.pdf

Preview of MN6557A PDF
MN6557A Datasheet Preview Page 2 MN6557A Datasheet Preview Page 3

Datasheet Details

Part number:

MN6557A

Manufacturer:

Panasonic Semiconductor

File Size:

43.53 KB

Description:

Low-power-consumption cmos 10-bit d/a converters for image processing.
