UNR5213, UNR Silicon NPN Transistor

Panasonic Semiconductor

Description

Transistors with built-in Resistor UNR521x Series (UN521x Series) Silicon NPN epitaxial planar type Unit: mm (0.425) For digital circuits * Feat.

📥 Download Datasheet

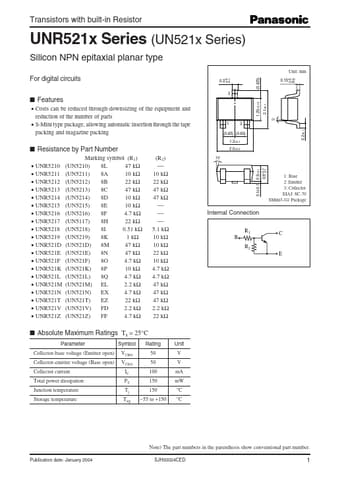

UNR5213 Datasheet Preview — This datasheet PDF includes multiple part numbers: UNR5213, UNR. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: UNR5213, UNR
Manufacturer: Panasonic Semiconductor
File Size: 438.69 KB
Datasheet: UNR-5210.pdf
Description: Silicon NPN Transistor
Note: This datasheet PDF includes multiple part numbers: UNR5213, UNR.
Please refer to the document for exact specifications by model.

Features

* Costs can be reduced through downsizing of the equipment and reduction of the number of parts
* S-Mini type package, allowing automatic insertion through the tape packing and magazine packing 0.3+0.1
* 0.0 3 0.15+0.10
* 0.05 1.25±0.10 2.1±0.1 5˚ 1 2 (0.65) (0.6
