AGQ20T09 - GQ RELAYS

This page provides the datasheet information for the AGQ20T09, a member of the AGQ20T1H GQ RELAYS family.

Datasheet Summary

Features

  • 1. Small size controlled 3.5 A inrush current possible 2. 2.4 coil voltage type newly available DC battery operation 3. Flat compact size 10.6 (L) × 7.2 (W) × 5.2 (H) mm .417 (L) × .283 (W) × .205 (H) inch.

📥 Download Datasheet

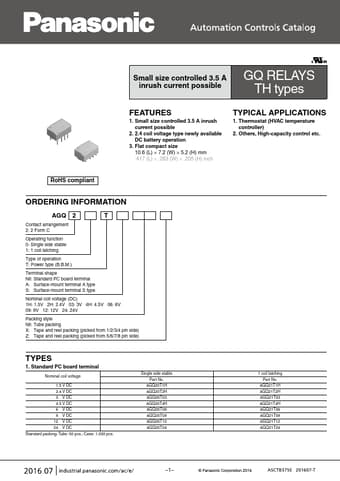

Datasheet preview – AGQ20T09

Datasheet Details

Part number AGQ20T09
Manufacturer Panasonic
File Size 215.25 KB
Description GQ RELAYS
Datasheet download datasheet AGQ20T09 Datasheet
Additional preview pages of the AGQ20T09 datasheet.

📁 Similar Datasheet

  • AGQ200 - Ultra-small Package Flat Polarized Relay (NAiS Automation)
  • AGQ200A - Ultra-small Package Flat Polarized Relay (NAiS Automation)
  • AGQ200S - Ultra-small Package Flat Polarized Relay (NAiS Automation)
  • AGQ210 - Ultra-small Package Flat Polarized Relay (NAiS Automation)
  • AGQ210A - Ultra-small Package Flat Polarized Relay (NAiS Automation)
  • AGQ210S - Ultra-small Package Flat Polarized Relay (NAiS Automation)
  • AGQ100-48S12 - Quarter-brick Converter (EMERSON)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text
Small size controlled 3.5 A inrush current possible GQ RELAYS TH types FEATURES 1. Small size controlled 3.5 A inrush current possible 2. 2.4 coil voltage type newly available DC battery operation 3. Flat compact size 10.6 (L) × 7.2 (W) × 5.2 (H) mm .417 (L) × .283 (W) × .205 (H) inch TYPICAL APPLICATIONS 1. Thermostat (HVAC temperature controller) 2. Others, High-capacity control etc. RoHS compliant ORDERING INFORMATION AGQ 2 T Contact arrangement 2: 2 Form C Operating function 0: Single side stable 1: 1 coil latching Type of operation T: Power type (B.B.M.) Terminal shape Nil: Standard PC board terminal A: Surface-mount terminal A type S: Surface-mount terminal S type Nominal coil voltage (DC) 1H: 1.5V 2H: 2.4V 03: 3V 4H: 4.
