AGQ20T1H Datasheet, Relays, Panasonic

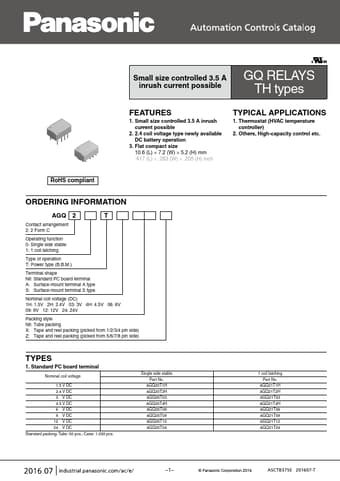

AGQ20T1H Features

• Relays 1. Small size controlled 3.5 A inrush current possible 2. 2.4 coil voltage type newly available DC battery operation 3. Flat compact size 10.6 (L) × 7.2 (W) × 5.2 (H) mm .417 (L) × .283

PDF File Details

Part number:

AGQ20T1H

Manufacturer:

Panasonic

File Size:

215.25kb

Download:

📄 Datasheet

Description:

Gq relays.

AGQ20T1H Application

• Applications 1. Thermostat (HVAC temperature controller) 2. Others, High-capacity control etc. RoHS compliant ORDERING INFORMATION AGQ 2 T Cont
