AN30180AA - 1.2 A Synchronous DC-DC Step Down Regulator

Product Overview

Panasonic

Part number	AN30180AA
Manufacturer	Panasonic
File Size	625.56 KB
Description	1.2 A Synchronous DC-DC Step Down Regulator
Datasheet	AN30180AA Datasheet

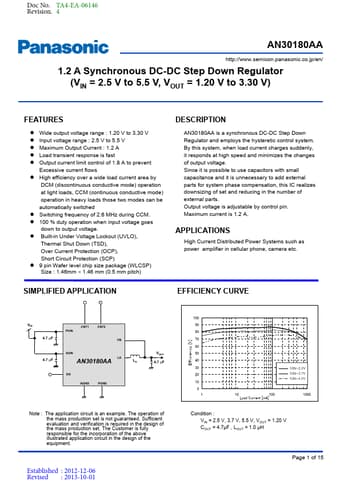

Additional preview pages of the AN30180AA datasheet.

Wide output voltage range : 1.20 V to 3.30 V.
Input voltage range : 2.5 V to 5.5 V.
Maximum Output Current : 1.2 A.
Load transient response is fast.
Output current limit control of 1.8 A to prevent Excessive current flows.
High efficiency over a wide load current area by DCM (discontinuous conductive mode) operation at light loads, CCM (continuous conductive mode) operation in heavy loads those two modes can be automatically switched.
Switching frequency of 2.
