AN30182A - 600mA Synchronous DC-DC Step-Down Regulator

AN30182A Description

AN30182A 600mA Synchronous DC-DC Step Down Regulator (2ch) 300mA LDO Regulator (6ch) Multi Power Supply (High Efficiency Power LSI) .
AN30182A is a multi power supply LSI which has HighSpeed Response DC-DC Step Down Regulators (2-ch) and LDO Regulators (6-ch).

AN30182A Features

* z High-Speed Response DC-DC Step Down Regulator Circuit that employs Hysteretic System z DC-DC Step Down Regulator : 2-ch Input voltage Range VBAT :2.5V to 5.5V DVDD : 1.7V to 3.0V Output voltage Range 0.8 V to 2.4 V Up to 600 mA Output Current z LDO Regulator : 6-ch Input voltage Range VBAT :2.5V t

AN30182A Applications

* Mobile phone, Portable appliance, etc SIMPLIFIED APPLICATION DVDD 0.1µF DDVBAT2 DDVBAT1 VB VIN2 4.7µF 4.7µF 4.7µF 4.7µF SDA SCL ASEL VLDO4 1µF VLDO5 1µF AN30182A LX1 FB1 DDGND1 LX2 FB2 DDGND2 1µH DCDCOUT1 4.7µF DCDCOUT2 1µH 4.7µF VLDO1 1µF VLDO2 1µF VLDO6 VLDO3 1µF VREG REF RESET LDO1O

📥 Download Datasheet

Preview of AN30182A PDF

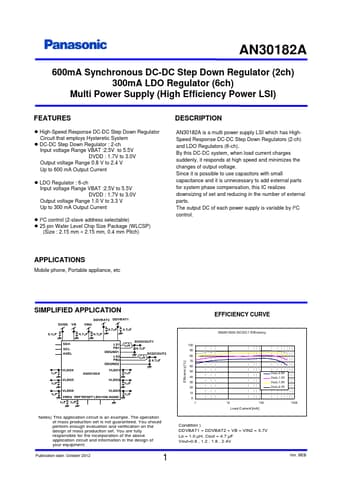

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AN30182A
Manufacturer
Panasonic
File Size
788.27 KB
Datasheet
AN30182A-Panasonic.pdf
Description
600mA Synchronous DC-DC Step-Down Regulator
