AN30183A Datasheet - Panasonic

600mA Synchronous DC-DC Step Down Regulator / 300mA LDO Regulator Multi Power Supply

AN30183A Features

* z High-Speed Response DC-DC Step Down Regulator Circuit that employs Hysteretic System z DC-DC Step Down Regulator : 1-ch Input voltage Range VBAT :2.5V to 5.5V DVDD : 1.7V to 3.0V Output voltage Range 0.8 V to 2.4 V Up to 600 mA Output Current z LDO Regulator : 4-ch Input voltage Range VBAT :2.5V t

AN30183A General Description

AN30183A is a multi power supply LSI which has HighSpeed Response DC-DC Step Down Regulators (1-ch) and LDO Regulators (4-ch). By this DC-DC system, when load current charges suddenly, it responds at high speed and minimizes the changes of output voltage. Since it is possible to use capacitors with .

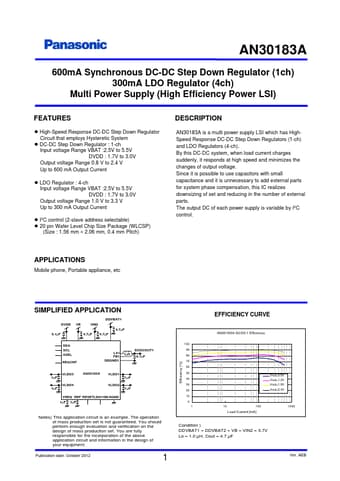

AN30183A Datasheet (847.02 KB)

AN30183A Datasheet Preview — Preview of AN30183A PDF

Datasheet Details

Part number:

AN30183A

Manufacturer:

Panasonic

File Size:

847.02 KB

Description:

600ma synchronous dc-dc step down regulator / 300ma ldo regulator multi power supply.
