AN30185A

General-purpose High Efficiency Power LSI

AN30185A Features

* DESCRIPTION z High-speed response DC-DC Step-Down Regulator circuit that employs hysteretic control system : 2-ch (1.0 V, 0.8 A / 1.8 V, 0.8 A) z LDO : 1-ch (0.9 V, 10 mA) z Built-in external Pch MOSFET gate drive circuits z Built-in Reset function z Built-in Under Voltage Lockout function (UVLO)

AN30185A General Description

z High-speed response DC-DC Step-Down Regulator circuit that employs hysteretic control system : 2-ch (1.0 V, 0.8 A / 1.8 V, 0.8 A) z LDO : 1-ch (0.9 V, 10 mA) z Built-in external Pch MOSFET gate drive circuits z Built-in Reset function z Built-in Under Voltage Lockout function (UVLO) z 24pin Plast.

AN30185A Datasheet (621.59 KB)

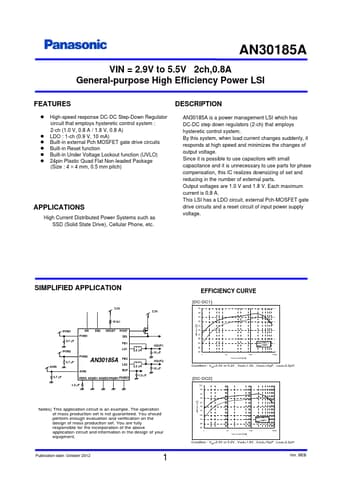

Preview of AN30185A PDF

Datasheet Details

Part number:

AN30185A

Manufacturer:

Panasonic

File Size:

621.59 KB

Description:

General-purpose high efficiency power lsi.
