AN32155A

4 x 3 Matrix LED Driver LSI

AN32155A Features

* 4 x 3 LED Matrix Driver (Total LED that can be driven = 12)

* LED maximum current selectable

* Step-up charge pump DC/DC converter : 200 mA

* I2C interface (Slave address selectable)

* 24 pin Wafer Level Chip Size Package (WLCSP) DESCRIPTION AN32155A is a 4 x 3 LED driver equi

AN32155A General Description

AN32155A is a 4 x 3 LED driver equipped with a step-up charge pump circuit. APPLICATIONS
* Mobile Phone
* Smart Phone
* PCs
* Game Consoles
* Home Appliances etc. GND CPGND IREF VLDO VB TYPICAL APPLICATION CPU I/F VDD INT SCL SDA NRST SLASEL CLKIO 4.7 F CP1 CN1 CP2 CN2 CPOU.

AN32155A Datasheet (506.47 KB)

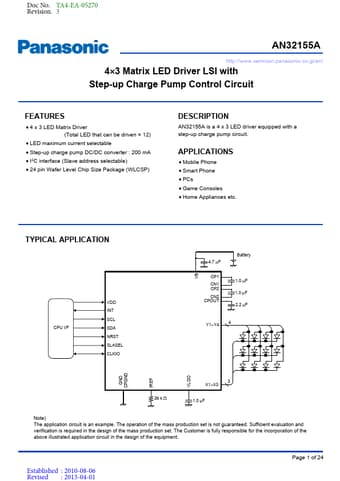

Preview of AN32155A PDF
